Project 6.2 The Low Pass Filter

This is the support page for the Low Pass Filter project in Complete Electronics Self-Teaching Guide with Projects.

Parts List:

  • One 1 kΩ, 0.25-watt resistor. (You can use the same resistor that you used in Project 6-1.)
  • One 0.016 F capacitor. (You can use the same capacitor that you used in Project 6-1.)
  • One function generator.
  • One oscilloscope. (You can substitute a multimeter and measure Vout in rms voltage rather than peak-to-peak voltage.)
  • One breadboard.

Photos:

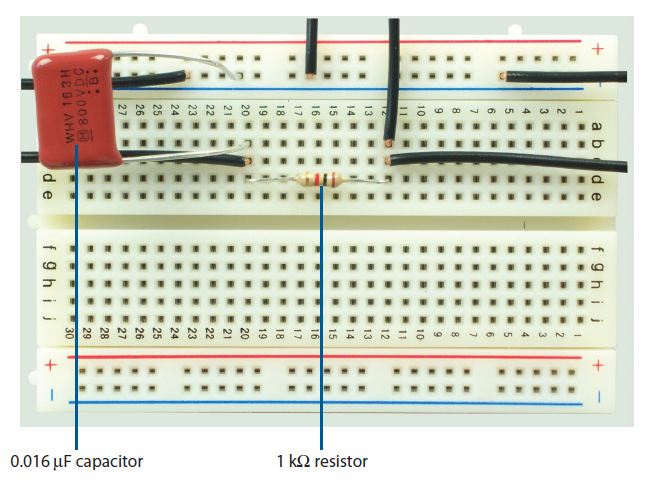

Project 6.2 Breadboarded low pass filter

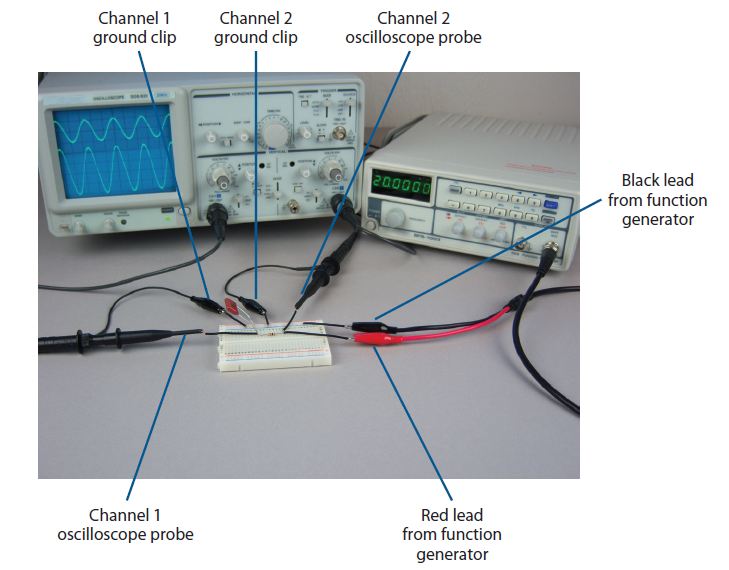

Project 6.2 Function generator and oscilloscope attached to the low pass filter circuit

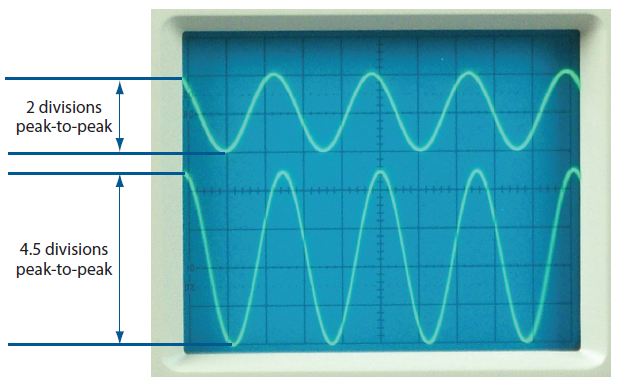

Project 6.2 Input sine wave (upper) and output sine wave (lower)

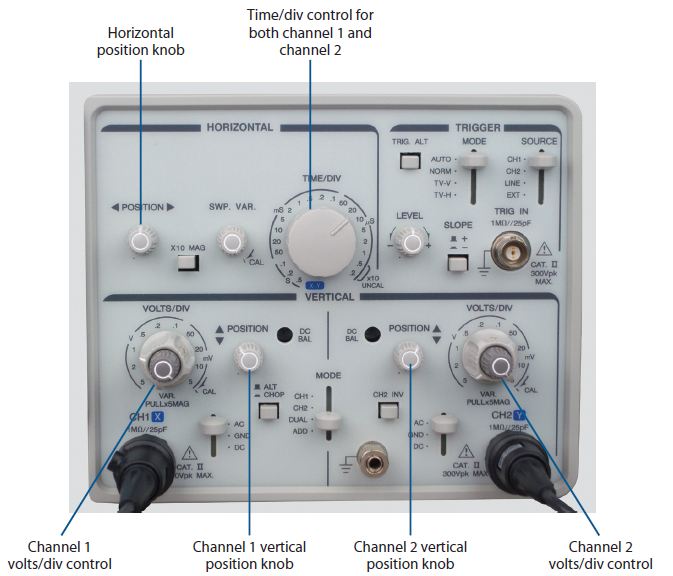

Project 6.2 Adjust oscilloscope controls
