Updates: All New Electronics Self Teaching Guide
In a 400 + page book there's bound to be a few typo's, thanks to feedback from a few readers I've put together a list. Starred items were fixed during reprinting of the book.
* Page 73; Corrected Figure 3-2:
Page 86; Problem 19E:
Ic = 300 µA, Ω = 50
should read:
Ic = 300 mA, β = 50
* Page 88:
"2 N3643" should be "2N3643"
* Page 90:
"2 N3643" should be "2N3643"
Page 113; Problem 9:
"you are using a lamp requiring 50 mA of current"
should read:
"you are using a lamp requiring 20 mA of current"
Page 143, Question 1
RC = 1 Ω
should read:
RC = 1 kΩ
Page 162; Question 6B:
L = 50 µF
should read:
L = 50 mH
Page 189; Problem 27:
"The input voltage in both cases is 20 Vpp."
should read:
The DC input voltage is 20 V, the AC input voltage is 10 Vpp."
Page 189; Figure 6-26 Right-hand figure (2):
600 Hz
should be:
60 Hz
Page 205; Answer 9D:
5 V
should be:
7 V
Page 209; Problem 2:
In the formula, keep in mind that X2 is (XL + XC)2
should be:
In the formula, keep in mind that X2 is (XL - XC)2
Page 228; Problem 26:

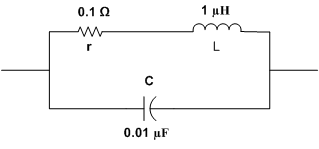

Corrected Figure 7-26:
Answer B:
Q = 10/0.01 = 100
should read:
Q = 10/0.1 = 100
Page 240; Answer 15:
fr = 30 Hz
should read:
fr = 30 kHz
Page 275; Corrected Figure 8-25:
Page 380; Question 19:
For the circuit in question 15,
should read:
For the circuit in question 18,
Page 385; Question 52:
Using the JFET amplifier circuit shown in problem 42 of Chapter 1,
should read:
Using the JFET amplifier circuit shown in problem 42 of Chapter 8,
