Errata for Complete Electronics Self-Teaching Guide

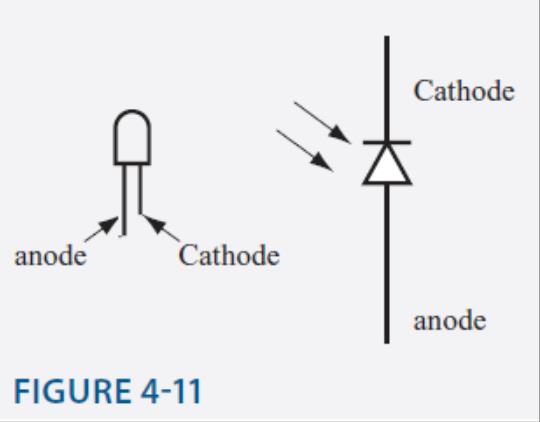

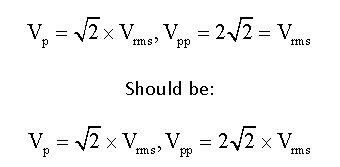

Page 17; Corrected Figure 1.5: Page 18; Corrected Figure 1.6:  Page 150; Corrected Figure 4.10: Page 151; Corrected Figure 4.11: Page 169; Problem 33, Answer B: Page 190; Problem 4: Page 207: 56.6 Vrms

Should be:

56.6 mVrms

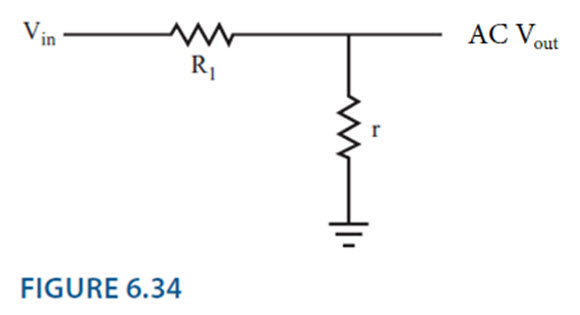

Page 246; Corrected Figure 6.34 Page 254; Problem 31, Answer A: Page 303; Problem 24:

“a bandwidth of 80 kQ.”

“a bandwidth of 80 kHz.”

Page 323; Problem 3A: Page 325; Problem 6:

Delete the following sentence:

“Therefore, β is the slope of the line shown in the graph.”

Page 325; Problem 7:

“In region Z of the graph shown in Figure 8-2, β (that is, the slope of the graph) is constant.”

Should be:

“In region Z of the graph shown in Figure 8-2, β is constant (at a given temperature).”

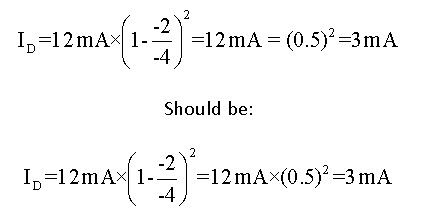

Page 332; Problem 13, Answer A: Page 363; Problem 32: Page 364; Problem 33: Page 365; Problem 35: Page 365; Problem 36: Page 369; Problem 42:

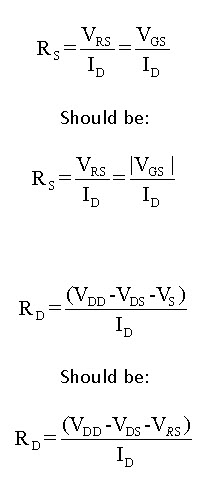

“recognizing that VRS = VGS

“recognizing that VRS = |VGS|” Page 446; Problem 13, Answer D:

Pout = VinIout = 24 × 0.5 = 12 watts (same as the power in)

Should be:

Pout = VoutIout = 24 × 0.5 = 12 watts (same as the power in)

“tecŠnician”

Should be:

“technician”

“tecŠnicians”

Should be:

“technicians”

Page 527; Parallel Resistance:
